EN 285 · ISO 17665-1 · NABL CC-2480 · Est. 2004
Autoclave / Sterilizer
Validation Services
Gujarat's trusted autoclave validation partner — EN 285, ISO 17665-1, EU GMP Annex 1 (2022), WHO TRS 970, HTM 01-01 compliant. Temperature distribution, heat penetration, F0 calculation, Bowie-Dick test. Full DQ/IQ/OQ/PQ documentation. Onsite across Gujarat.
GMP Validated
WHO · EU · FDA
EN 285
ISO 17665-1
— WHAT IS AUTOCLAVE VALIDATION —
Autoclave / Sterilizer Validation —
Why It Is GMP Mandatory
Autoclave validation proves that your steam sterilizer consistently achieves Sterility Assurance Level (SAL) of 10⁻⁶ at every point of the load under defined cycle parameters — and that this is documented with the evidence required to satisfy regulatory inspectors.
Mandatory under EU GMP Annex 1 (2022) and Schedule M India
Both revised EU GMP Annex 1 (2022) and India's Schedule M (2023) require full DQ/IQ/OQ/PQ qualification with temperature distribution and heat penetration studies before any autoclave can be used in pharmaceutical manufacturing.
F0 value proves sterility without culture testing every batch
A validated sterilization cycle with a documented minimum F0 value provides overkill assurance — your product is sterile based on engineering evidence, not batch-by-batch biological indicator testing.
A failed sterilization cycle = batch rejection and investigation
An unvalidated autoclave or a cycle failure means the entire batch must be rejected, a GMP deviation opened, root cause investigated, and regulatory notification potentially required — far more costly than one validation.
Autoclave Validation — What Prism Tests
EN 285 / ISO 17665-1 / EU GMP Annex 1
Autoclave Acceptance Criteria
EN 285 / ISO 17665Temp homogeneity (OQ)
±1°C of set-point (121°C or 134°C)
Min F0 (overkill cycle)
≥12 min (z=10°C, Tref=121°C)
Bowie-Dick test
Uniform colour change, no air pockets
Vacuum leak test
≤1.3 mbar/min pressure rise (EN 285)
SAL achieved
10⁻⁶ (Sterility Assurance Level)
Data logger traceability
NABL CC-2480 calibrated
— WHAT YOU GET —
Every Autoclave Validation Includes
Complete GMP validation package — from onsite testing to regulatory-ready reports.
Onsite at Your Facility
Engineers arrive with NABL-calibrated data loggers, Bowie-Dick test packs, and all required validation equipment. No autoclave removal needed.

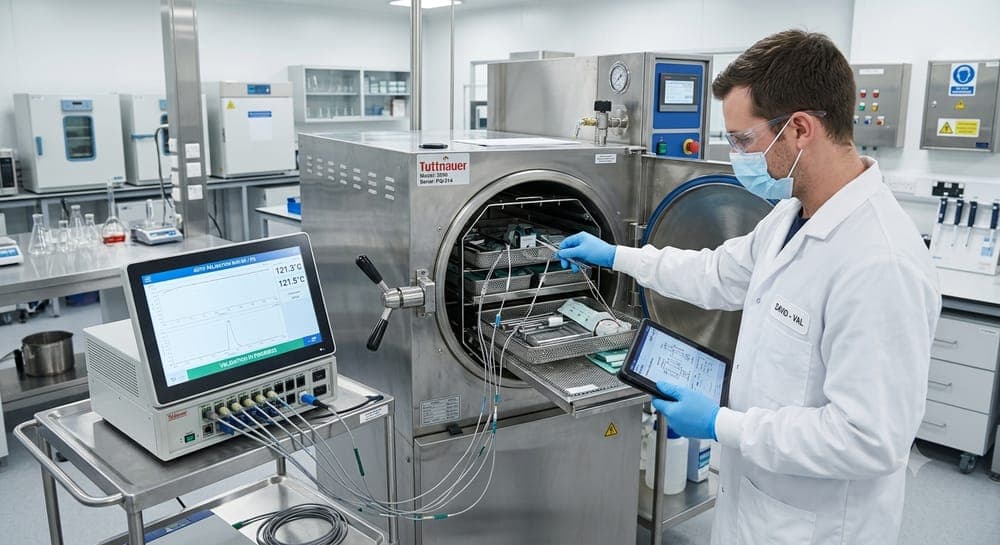

Temperature Distribution Study
Empty chamber study with 12+ data loggers at standardised positions per EN 285. Minimum 3 consecutive runs per sterilization cycle type.
Heat Penetration & F0 Calc
Loaded worst-case study with data loggers inside actual product/containers. F0 calculation at every logger position to verify SAL 10⁻⁶.
GMP Validation Report
Regulatory-ready validation report with DQ/IQ/OQ/PQ protocols, raw data, F0 values, Bowie-Dick results, deviations, and CAPA — within 7 days.
Fast Report Turnaround
Preliminary findings within 48 hours. Final GMP validation report with all annexures delivered within 7 working days of site work completion.
NABL-Calibrated Data Loggers
All temperature data loggers used are NABL CC-2480 calibrated — mandatory requirement under FDA 21 CFR Part 11 and EU GMP Annex 1.
Bowie-Dick & Vacuum Leak Test
Bowie-Dick process challenge device test and vacuum leak test per EN 285 for porous load autoclaves. Results included in PQ report.
Annual Requalification Program
Scheduled annual requalification with cycle data review and F0 recalculation — keeps your autoclaves perpetually GMP-compliant.
Onsite Across Gujarat · EN 285 · ISO 17665-1
Ready to Validate Your Autoclave?
Onsite service · 7-day report delivery · FDA, WHO and EU GMP accepted documentation
— OUR PROCESS —
Autoclave Validation Process — Step by Step
Every autoclave validation follows the GMP lifecycle per EU GMP Annex 1 (2022), EN 285, and ISPE Steam Sterilization Baseline Guide.
Design Qualification (DQ)
Review autoclave specifications, chamber size, jacket pressure, cycle parameters, and utility requirements. VMP drafted with scope, acceptance criteria, and sterilization cycle definition.
Installation Qualification (IQ)
Verification that autoclave, steam utilities, safety valves, control system, and recording instruments are installed per approved drawings and manufacturer specifications.
Operational Qualification (OQ) — Temperature Distribution
Empty chamber temperature distribution study with 12+ calibrated data loggers at defined positions. Minimum 3 consecutive runs per cycle type. F0 or time-temperature acceptance criteria verified.
Performance Qualification (PQ) — Heat Penetration
Loaded heat penetration study at worst-case load configuration. F0 calculation for sterilization cycles. Bowie-Dick test for porous load autoclaves. Vacuum leak test per EN 285.
Deviation & CAPA
Any OOS temperature readings, failed Bowie-Dick tests, or F0 shortfalls documented as deviations with root cause analysis and CAPA. Retesting performed before final sign-off.
Validation Report Issued
Complete validation report with DQ/IQ/OQ/PQ protocols, raw data, F0 calculations, Bowie-Dick results, deviation log, and conclusion — GMP-ready within 7 days.
Industry Applications
Industries That Require Autoclave Validation
Pharmaceutical Manufacturing
EU GMP Annex 1 (2022) compliant autoclave validation for sterile and non-sterile manufacturing, API processing, and primary packaging sterilization.
Know MoreBiotech & Biopharma
Autoclave validation for bioreactor vessels, fermentation equipment, and media preparation sterilization per FDA 21 CFR Part 210/211.
Know MoreMedical Device Manufacturing
Sterilizer validation per EN ISO 17665-1 for steam sterilization of medical devices under MDR/IVDR and ISO 13485 requirements.
Know MoreHospital CSSD
Autoclave requalification for hospital central sterile supply departments per HTM 01-01, NABH, and MoHFW infection control guidelines.
Know MoreResearch & Academic Labs
Pressure vessel autoclave validation for university research labs, reference testing facilities, and NABL-accredited microbiology labs.
Know MoreVeterinary & Animal Health
Autoclave qualification for veterinary pharmaceutical manufacturers and animal health product sterilization per FSSAI and regulatory requirements.
Know MoreFood & Beverage Processing
Retort and autoclave qualification for food sterilization and beverage processing per FSSAI, Codex Alimentarius, and HACCP requirements.
Know MoreNuclear & Defense
High-integrity autoclave validation for nuclear waste decontamination and defense sector decontamination applications with full traceability.
Know MoreWhy Choose Prism
Two Decades of GMP Validation.
Zero Audit Observations.
Since 2004, every autoclave validation report issued by Prism has been accepted by FDA, WHO GMP, EU GMP, GPCB, and NABH auditors — no observations, no rework.
— STANDARDS & COMPLIANCE —
Autoclave Validation Standards We Follow
Every autoclave validation follows documented protocols aligned with international GMP and sterilization standards — accepted by FDA, WHO, EU, GPCB, and NABH inspectors.
EN 285:2015+A1:2021
Steam sterilization — large sterilizers
ISO 17665-1:2006
Moist heat sterilization validation
EU GMP Annex 1 (2022)
Sterile medicinal products
WHO TRS 970
WHO supplementary GMP guidelines
HTM 01-01
Hospital sterilization decontamination
HTM 2010
Sterilization in healthcare
ISPE Steam Guide
ISPE Baseline Steam Sterilization Guide
ISO/IEC 17025:2017
NABL accreditation — CC-2480
NABL CC-2480 + 20 Years GMP Track Record
All temperature data loggers used in autoclave validation are NABL calibrated under CC-2480 (ISO/IEC 17025:2017) — giving every validation report full regulatory traceability for FDA, WHO, EU GMP, GPCB, and NABH audits.
600+
Autoclaves Validated
0
Audit Observations Raised
— NON-GMP QUALIFICATION —
Autoclave Qualification for Non-Pharma Facilities
Not every autoclave requires full pharmaceutical GMP DQ/IQ/OQ/PQ. For hospitals, laboratories, food processing, and research environments — Prism offers routine autoclave qualification and temperature mapping at cost-effective pricing with the same NABL-calibrated instruments.
NABL-Traceable Instruments
All data loggers are NABL CC-2480 calibrated regardless of whether the qualification is GMP or non-GMP.
Faster Completion
Non-GMP temperature mapping completed within 3–5 days. GMP DQ/IQ/OQ/PQ packages take 7–10 days.
Flexible Scope
Choose only the tests you need — temperature mapping only, or full DQ/IQ/OQ/PQ — priced accordingly.
Onsite — No Shutdown
All testing done at your facility with portable instruments. Autoclave not removed from service.
Onsite Coverage
Serving All
of Gujarat
Validation engineers based in Ahmedabad (GIDC Vatva) cover the full Gujarat pharma corridor onsite.
— VALIDATION SERVICES —
Validation Services We Offer
8 GMP validation services — all under one NABL-accredited roof. View all services →
Clean Room Validation
4 test parameters
- ISO 14644-1 Particle Count
- HEPA Filter PAO/DOP Test
- ACH & Airflow Velocity
- Differential Pressure Cascade
Autoclave / Sterilizer
4 test parameters
- Temperature Distribution Study
- Heat Penetration Study
- IQ / OQ / PQ Documentation
- Bowie-Dick & Leak Test
Stability Chamber
4 test parameters
- T&H Mapping (ICH Q1A)
- Uniformity Verification
- IQ / OQ / PQ Protocols
- Data Logger Calibration
DQ / IQ / OQ / PQ
4 test parameters
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
AHU Validation
4 test parameters
- Airflow & Velocity Balancing
- HEPA Integrity Testing
- Pressure & ACH Verification
- Filter Efficiency Testing
PLC / Software Validation
4 test parameters
- 21 CFR Part 11 Compliance
- GAMP 5 Validation
- IQ / OQ / PQ for Software
- Audit Trail Verification
Thermography / Oven
4 test parameters
- Hot Air Oven Temperature Mapping
- Thermal Distribution Study
- Infrared Thermography
- IQ / OQ / PQ Documentation
Performance Qualification
4 test parameters
- Worst-Case PQ Testing
- Process Performance Study
- Statistical Acceptance Criteria
- GMP-Ready PQ Report
— Our Clients —
Trusted By Gujarat's Leading Pharma Companies
— CLIENT VOICES —
What Our Autoclave Validation Clients Say
Prism validated 6 autoclaves in our new sterile block — temperature distribution study, heat penetration study, Bowie-Dick, and full IQ/OQ/PQ documentation. Completed in 10 days, accepted in EU GMP inspection without any observations.
Annual requalification of our 4 autoclaves by Prism — all DQ/IQ/OQ/PQ records updated, F0 calculations verified, and cycle parameters confirmed. Report accepted in WHO GMP audit the same week.
Prism onsite autoclave validation for our new 1000L double-door sterilizer. Temperature mapping with 12 data loggers, heat penetration study at worst-case loading. Full validation package in GMP format within 7 days.
Prism validated 6 autoclaves in our new sterile block — temperature distribution study, heat penetration study, Bowie-Dick, and full IQ/OQ/PQ documentation. Completed in 10 days, accepted in EU GMP inspection without any observations.
Annual requalification of our 4 autoclaves by Prism — all DQ/IQ/OQ/PQ records updated, F0 calculations verified, and cycle parameters confirmed. Report accepted in WHO GMP audit the same week.
Prism onsite autoclave validation for our new 1000L double-door sterilizer. Temperature mapping with 12 data loggers, heat penetration study at worst-case loading. Full validation package in GMP format within 7 days.
Prism validated 6 autoclaves in our new sterile block — temperature distribution study, heat penetration study, Bowie-Dick, and full IQ/OQ/PQ documentation. Completed in 10 days, accepted in EU GMP inspection without any observations.
Annual requalification of our 4 autoclaves by Prism — all DQ/IQ/OQ/PQ records updated, F0 calculations verified, and cycle parameters confirmed. Report accepted in WHO GMP audit the same week.
Prism onsite autoclave validation for our new 1000L double-door sterilizer. Temperature mapping with 12 data loggers, heat penetration study at worst-case loading. Full validation package in GMP format within 7 days.
Get In Touch
Request a Free Quote
Tell us your autoclave make, model, chamber volume, cycle type (121°C / 134°C), and regulatory requirement. Our team responds within 2 business hours.
— FAQ —
Autoclave Validation — Frequently Asked Questions
Need Autoclave Validation in Gujarat?
Call or WhatsApp — we reply within the hour. Onsite across all Gujarat, GMP validation report guaranteed.
